Tire Building Rig

Hydraulic operated tire building rig is used for removing and installation of aircraft wheel. Removal & mounting of the tires with tubes and tubeless tires of diameter upto 14-15 mm.



Technical Specifications
  • Hydraulic tank capacity : 10 Ltr
  • Working Pressure : 12.5 MPA (125 Kg / cm^2 )
  • Pulling force developed by hydraulic cylinder with pressure in hydraulic system -  125 Kg / cm^2  : 9000 Kg
  • Stroke of hydraulic cylinder : 225 mm
  • Height adjustment of the cross beam : 0 – 590 mm
  • Adjustment of pressing pad : dia 232 – 800 mm
  • Overall dimension l X w X h (in mm) : 1830 X 111 X 160
  • Overall length with tow bar : 3090 mm

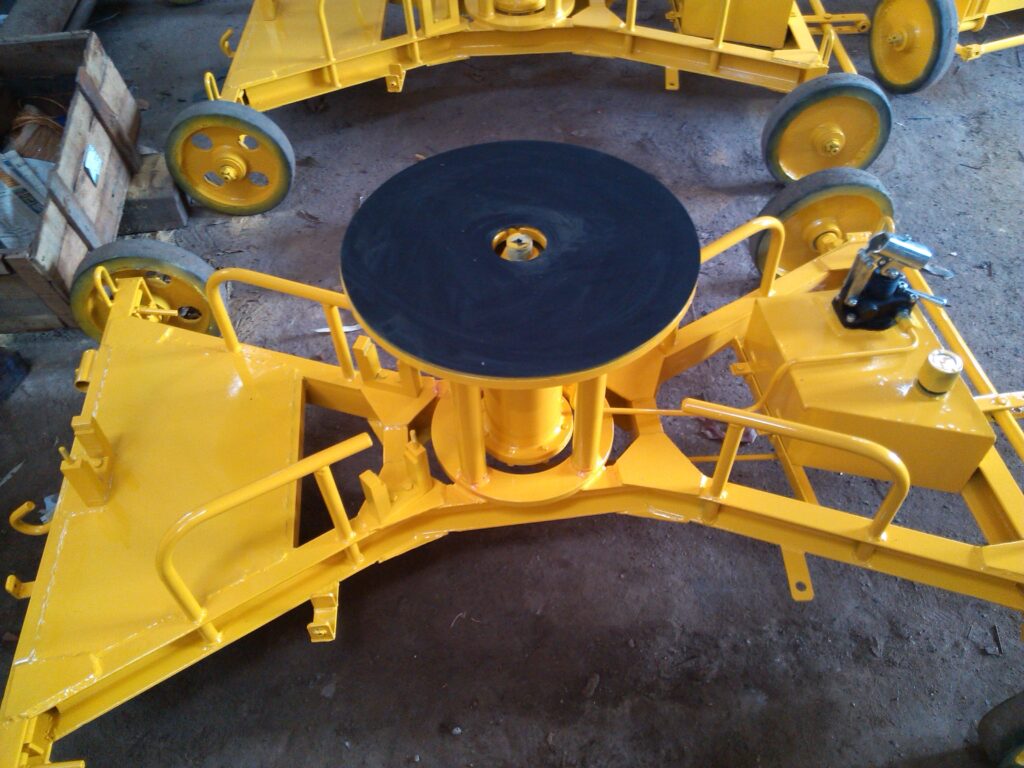

Tire Building Rig (for removal and installation of aircraft wheel )
