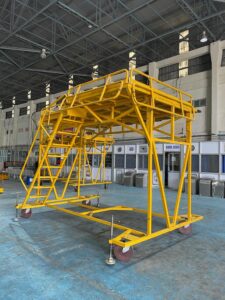

Servicing Platform

Portable special purpose servicing platform for work at main and tail rotor of MI17 / MI17 V5 helicopter. Suitable for carrying and working safely on helicopter from the platform by 3 to 4 technicians with equipment and tools.

Technical specifications
  • Load bearing capacity : 1000 Kg[spacer height=”3px”]
  • Overall dimension – l X w X h (in mm) : 3800 X 2600 X 2930 [spacer height=”3px”]
  • Platform width : 2000 mm[spacer height=”3px”]
  • Railing height : 240 – 260 mm[spacer height=”3px”]
  • No of steps : 7-9[spacer height=”3px”]
  • Clearance between steps : 300 – 330 mm[spacer height=”3px”]
  • No of screwed stoppers : 4[spacer height=”3px”]
  • No of wheels : 4[spacer height=”3px”]
  • Wheel dimension  :  dia – 300 mm width – 50 mm
